Flow Recorder

Flow Recorder

Download Fact Sheet

Description

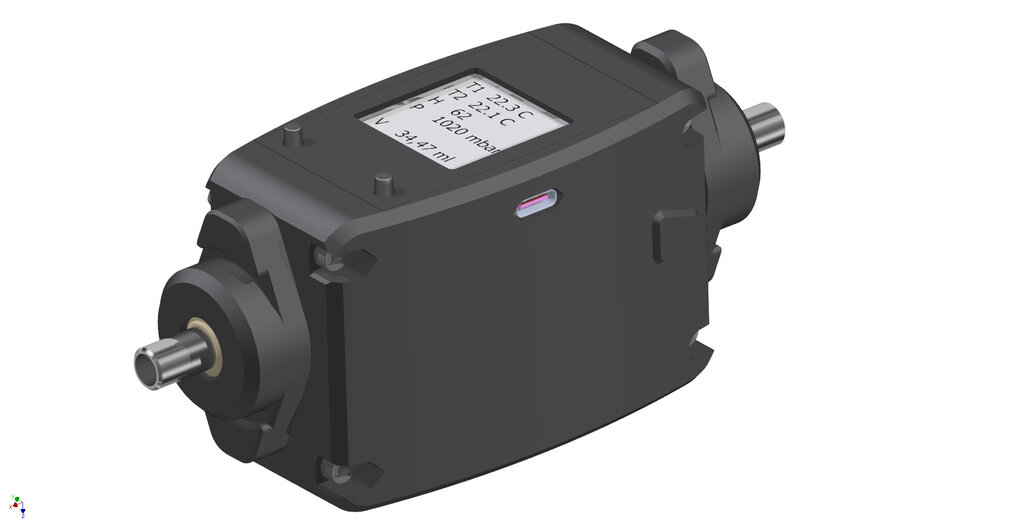

The Burghart Flow Recorder measures the flow through the device with high resolution. The profile of the flow is recorded, analyzed, and can be matched against fail criteria.

Features

Puff profiling according to ISO3308 and ISO20778

Flow profile, flow maximum, tail volume, puff volume, puff duration
Adjustable threshold
Instant puff analysis and evaluation against fail criteria

Validated against ISO7210
E-paper display for showing current values and puff shape (200 x 200 px)
Detection of individual puffs in series measurement

Single values and average values of puff series (volume, tail, peak flow, etc.)

Optional resistance to draw measurement
Handheld wireless sensor unit
Evaluation App for operation systems IOS, Android and Windows (Tablet supported)
Future proof due to state-of-the-art platform-independent programming
Flow is measured by highly linear Laminar Flow Element (LFE)

The LFE can be exchanged and customized (e.g., for repair and re-calibration)
Customized LFEs for flows up to 500 ml/s (e.g., Shisha puffing)

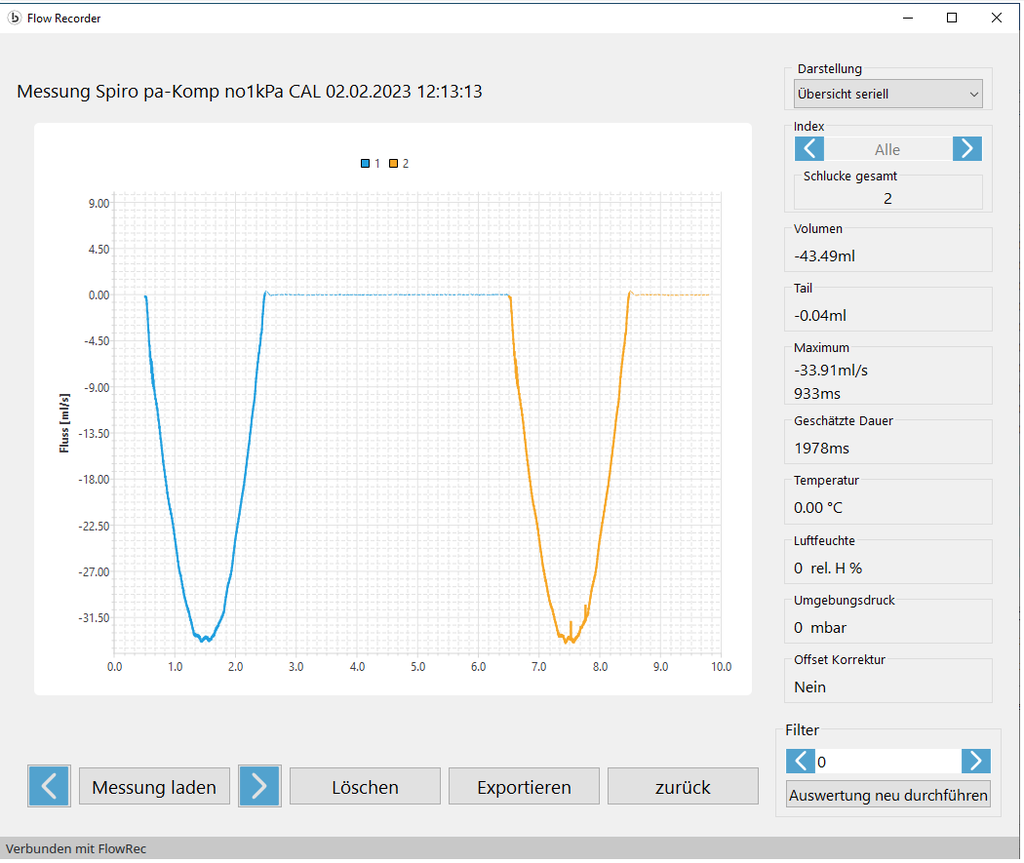

Measurements stored in database, exportable as CSV

csv-export
